Raspberry Pi 5 Board ONLY

Name: Raspberry Pi 5 Board ONLY
Brand: Raspberry Pi Foundation
SKU: RPi-5-Board-4Gig-1
Price: 57.95 EUR
Availability: InStock

€57,95 EUR

Sale Sold out

Shipping calculated at checkout.

RAM Size 4 Gig 8 Gig

Product variants

Quantity

We only allow 1 Board per Customer of this Product. We will refund orders beyond the limits set. This is to allow access to be Raspberry Pi Boards to more people.

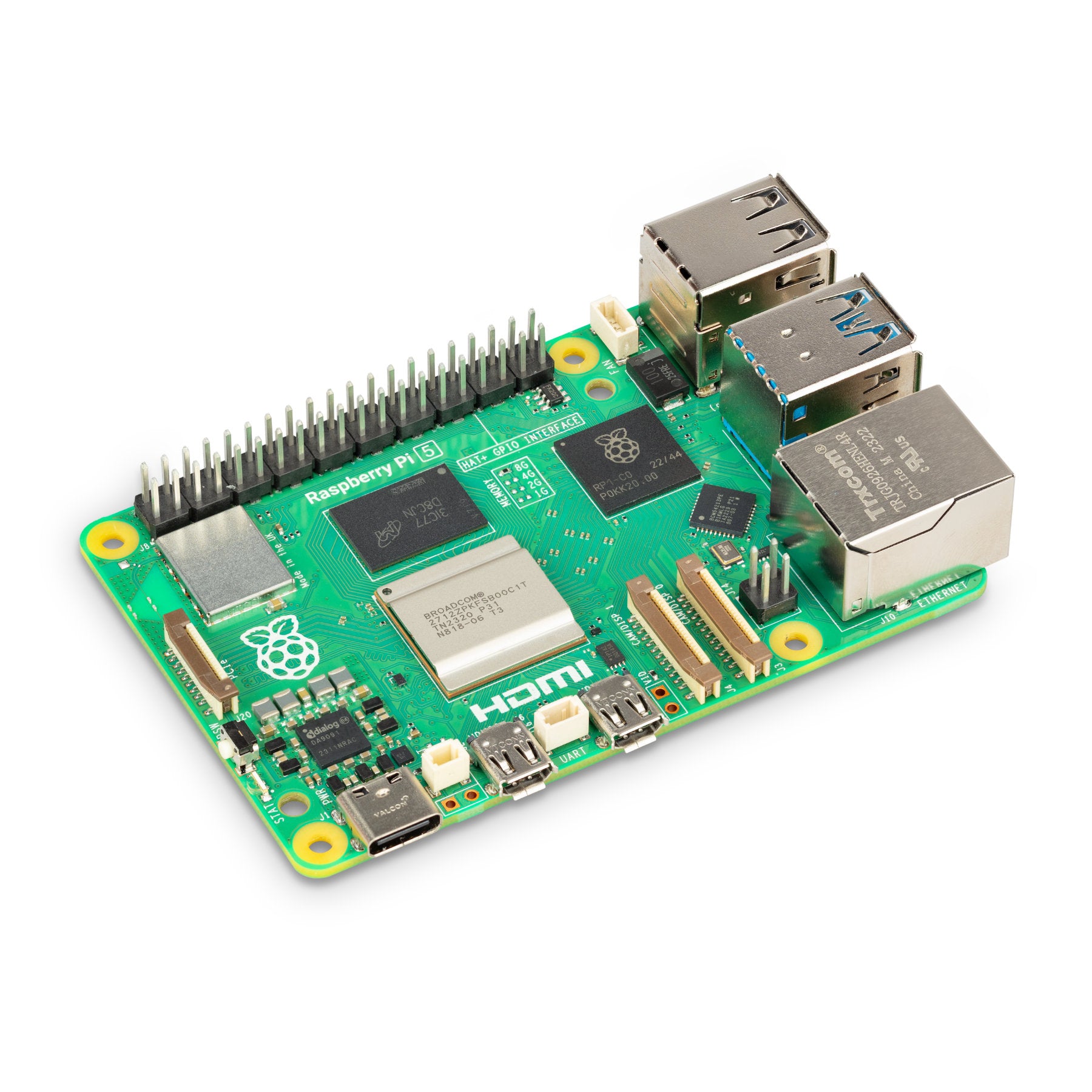

Raspberry Pi 5 is the latest product in the popular Raspberry Pi range of computers. It offers up to 2-3x improved CPU performance compared to the prior-generation Raspberry Pi 4. Significant increase in video performance driven by the VideoCore VII GPU that allows for dual 4Kp60 display over both HDMI ports. For the end user, Raspberry Pi 5 provides a smooth desktop performance and can be the next 'everything computer.'

This product's key features include the following:

Integrated power button and power management IC
Built in RTC support
One (1) PCIe 2.0 interface
high-performance 64-bit quad-core processor
dual-display support at resolutions up to 4K via a pair of micro-HDMI ports
hardware video decode at up to 4Kp60
up to 8GB of RAM
dual-band 2.4/5.0 GHz wireless LAN
Bluetooth 5.0
Gigabit Ethernet
USB 3.0, simultaneous support for 5 Gbps transfer
PoE+ capability, PoE 802.3at compliant (via a separate PoE+ HAT add-on)
Two (2) 4-lane MIPI DSI/CSI port allowing for up to 2 cameras or displays

The dual-band wireless LAN and Bluetooth have modular compliance certification, allowing the board to be designed into end products with significantly reduced compliance testing, improving both cost and time to market.

Processor:	Broadcom BCM2712, quad-core Cortex-A76 (ARM v8) 64-bit SoC @ 2.4 GHz
Memory:	4GB LPDDR4X-4267 SDRAM 8GB LPDDR4X-4267 SDRAM
Connectivity:	2.4 GHz and 5.0 GHz 802.11ac wireless LAN Bluetooth 5.0, BLE 2 x USB 3.0 ports, 5 Gbps simultaneous operation support 2 x USB 2.0 ports
GPIO:	Standard 40-pin GPIO header (fully backwards-compatible with previous boards)
Video & Sound:	2 x micro HDMI ports (up to 4Kp60 supported) Two (2) 4-lane MIPI DSI/CSI display port, dual camera or display support VideoCore V3D VII GPU Audio via HDMI ports
Multimedia:	4Kp60 HEVC decoder OpenGL ES, 3.1 graphics, Vulkan 1.2
SD card support:	Micro SD card slot, now with support for high-speed SDR104 mode
PCIe Interface:	PCIe 2.0 x 1 slot

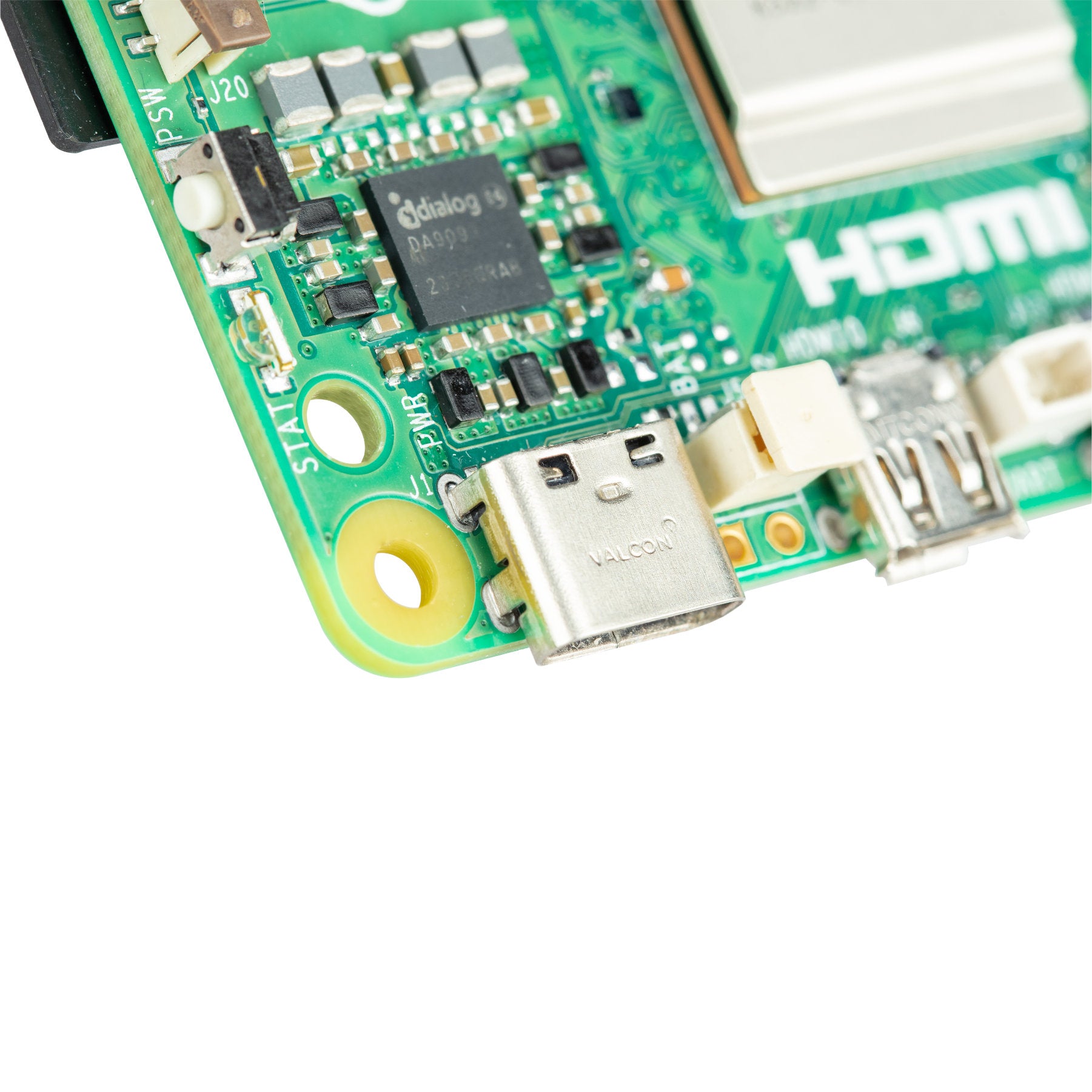

Power:	5V/5A DC power via USB-C, with Power Delivery support Power over Ethernet+ (PoE+)-enabled; PoE 802.3at compliant (requires separate PoE+ HAT) Integrated power button and power management controller Built-in RTC support
Compliance:	For a full list of local and regional product approvals, please visit pip.raspberrypi.com
Production lifetime:	The Raspberry Pi 5 will remain in production until at least January 2035
